ZXD-440 Automatic In-line Transformer Core Stacking Production Line

Product Definition

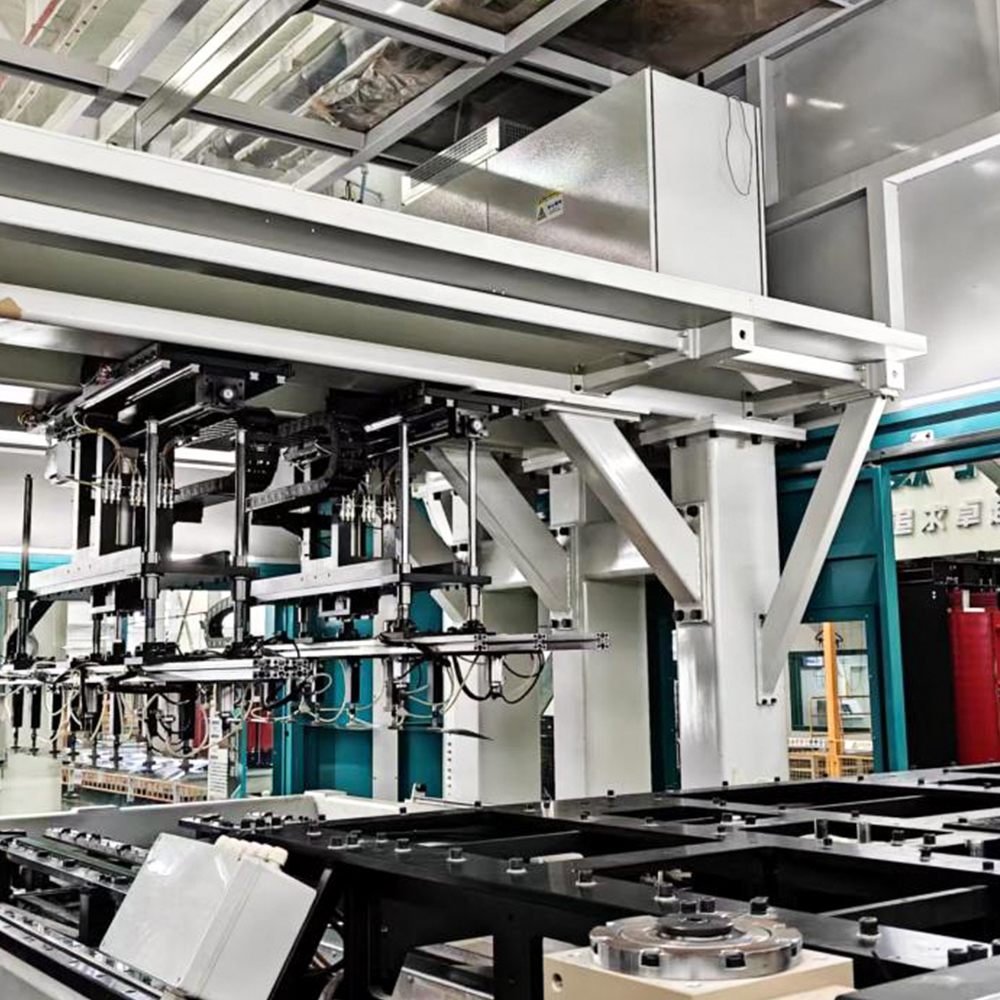

Apparatus hoc directe coniungitur cum linea tonsura transversali pro automatario positis, ut simultaneam tonsuram et reclinationem efficiat, traditis gradibus levandi post tonsuram et positionem manualem eliminat..

Contact Us
Adde Cart
Applications Commentarium

Officia emptori

  • Supple et connectere funem cum instrumento electrico arcae publicae utilitatis per condiciones; connect requiritur grounding funem ad designatum nexum punctum in apparatu.
  • Constructio instrumentorum fundamenta (including nucleum terebrandi, PVC aquaeductus, etc.), pipelines, partes infixa et systemata fundatio.
  • Grus supra caput / gruis mobilis / forklift et alia instrumenta quae requiruntur ad exonerandam, positionem, institutionem / committendam in loco emptoris.
  • Compressus aer, electricitas et materia auxilia armorum committendo, designato loco tradita sunt.
  • Materiae iudicio-rum committendi in designato loco redditae sunt.

Partus, acceptatio & inspectio

  • Inspectio signa: hoc technicum pactum et fabrica applicabilis nationalis signa.
  • Acceptatio et inspectio ab utraque parte ad locum productionis amet secundum conventionem technicam faciendam; apparatu uit post inspectionem.
  • Plena peractio probatio agetur in fine loci usoris; ambae partes item acceptationem per contractum et pactum technicum praestabunt; Relatio de acceptatione ab utraque parte in transitu subsignata erit.

Apparatus Compositio

Complete Equipment Compositio
Nec. Component Qty. Dicta

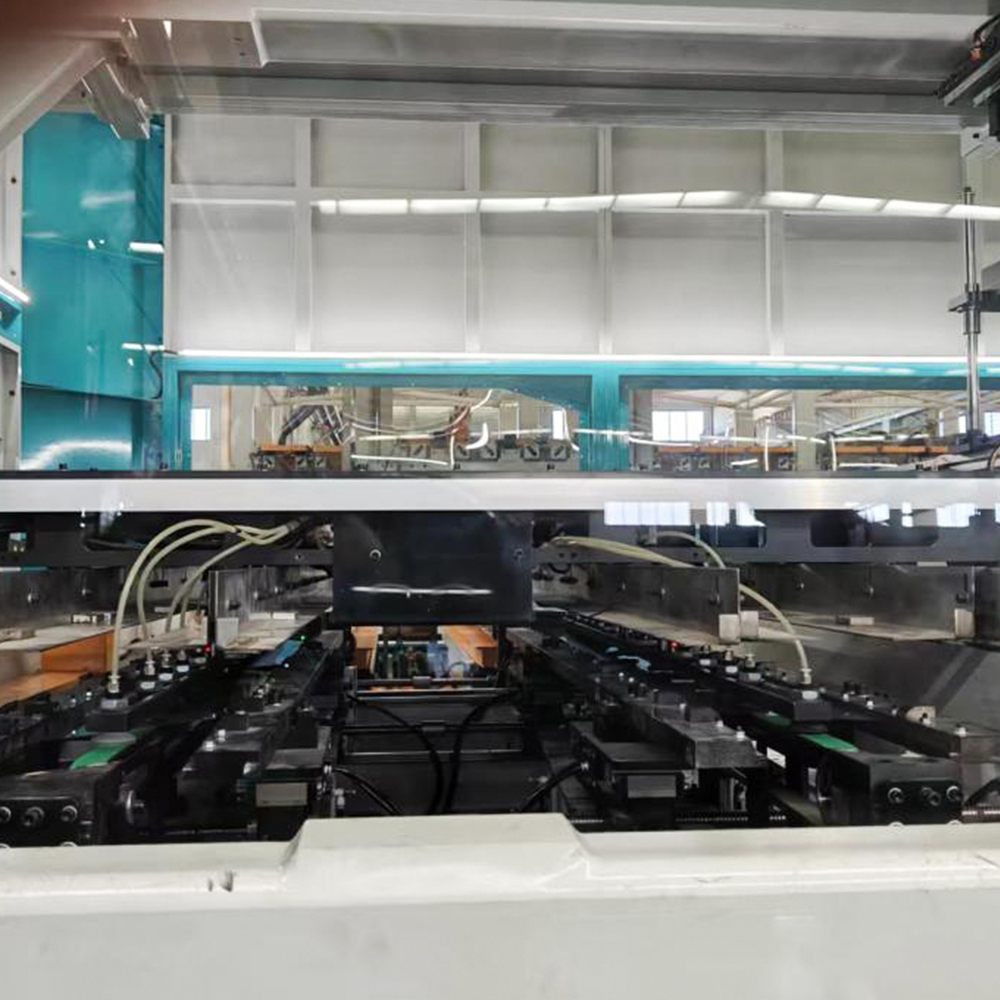

1 Equipment Main Corpus 1 set

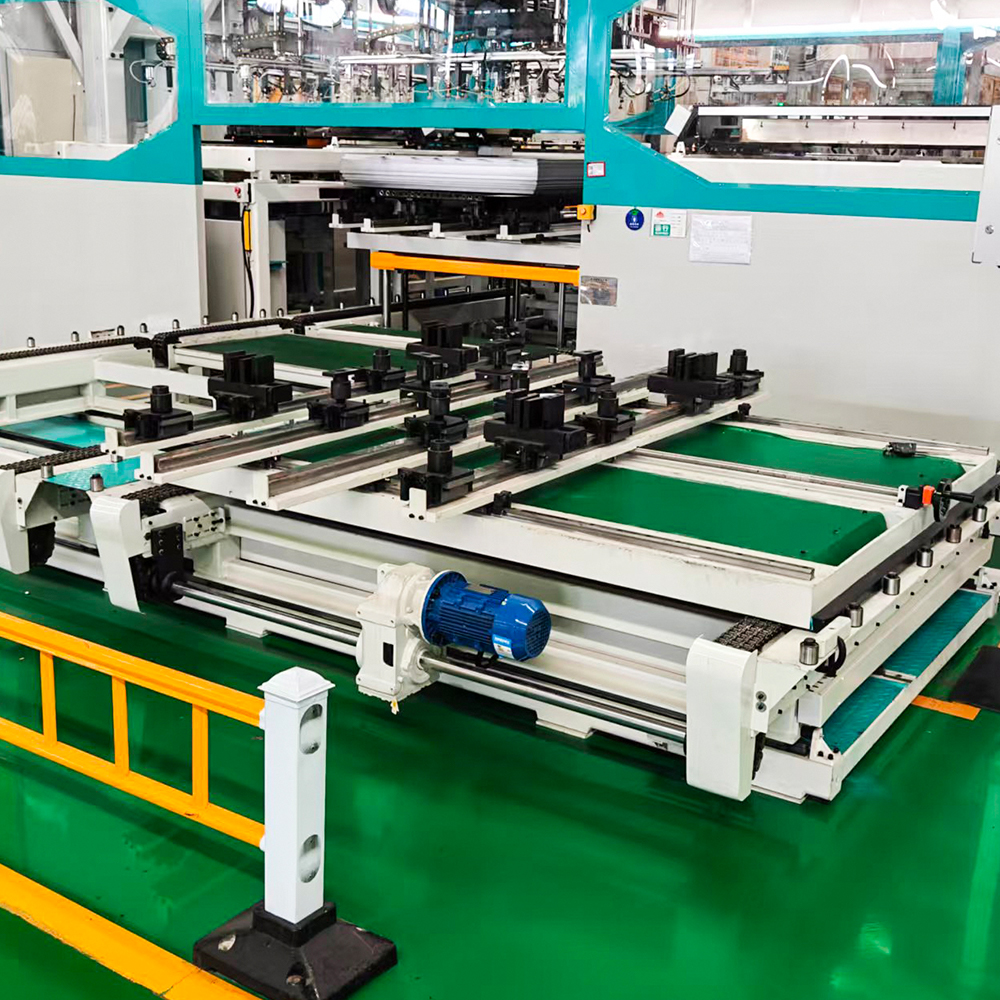

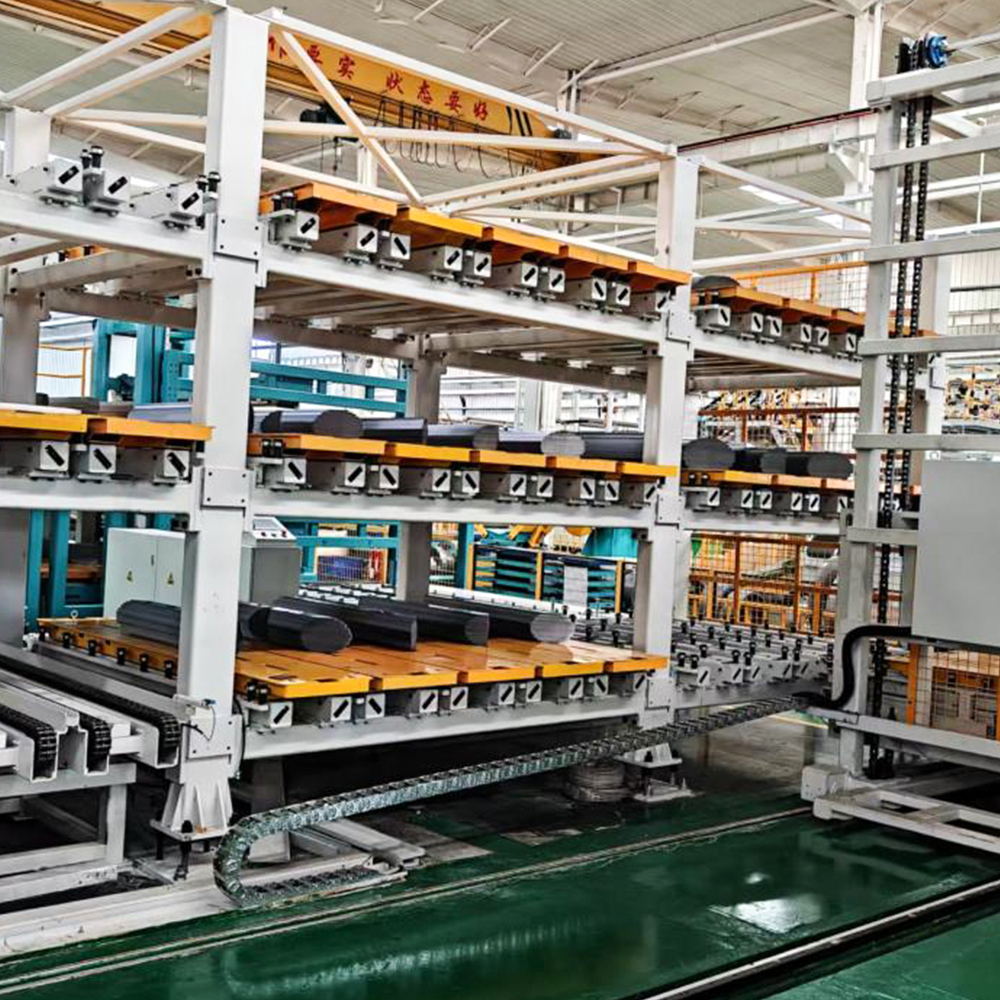

2 Material Distribution & Transport Bed 1 set
3 Productum Stacking Platforms & Exchange Platforms 4 4 sets 4 positis 4 standby
4 Imperium Electrical Cabinet 1 set Systema moderatoris includit, servo impellit, et frequentiam invertunt,

Pelagus Technical Parameters (Stack Machina)

Nec. Parameter euismod ZXD-440
1 Lamination Specifications Latitudo 50-440 mm
Crassitudo 0.18–0.35 mm
Latus membrum Longitudo 380 mm (angularis ad angulum) - 2500 mm
iugum Longitudo 380 mm (angularis ad angulum) - 2500 mm
Centrum Limb 380-2060 mm
Max Core (L×W×H) 2500×2500×600 mm
3 Stacking Accuracy Eodem gradu-Longitudo Directio ≤±0.5 mm
Eodem-gradus Directio Latitudo ≤±0.5 mm
Eodem gradu Crassitudo error (reclinant per comitem sheet) ≤1 mm
Nota: Accuratio Core eodem tempore afficitur scheda subtiliter secans et accurate positis. Manuale renovare post positis requiritur ad altiorem praecisionem perficiendam. Si shutdown formandi debitum ad altiorem accurationem emptoris requisita instrumenta productiva in normali productione reducit, responsalitas cum emptore iacet et cum instrumento supplementi aliena est.
8 Stacking Cycle Time Proxime. 60 sheets/min Acceptance standard core: Width 260 mm; Longitudo 1000 mm
9 Air Supple Pressura ≥0.6 MPa
Totalis Aeris Consummatio (salvis vacuum generante industria, compressi aeris costs reduces) ≤0.6 m³/min
10 Armorum sonitus ≤80 dB
11 Apparatus Color Factory vexillum: Main color: Light Gray 7035, Sky Blue 5015; Moving parts: Signum Yellow 1003. Consuetudo colorum in promptu est.
12 Opus intentione Voltage Fluctuation 380 V ± 10%
Frequentia 50 Hz ± 2%
13 Capacitas installed 55 kW

Main Components & Brands (Line tonsura)

Nec. Item Brand

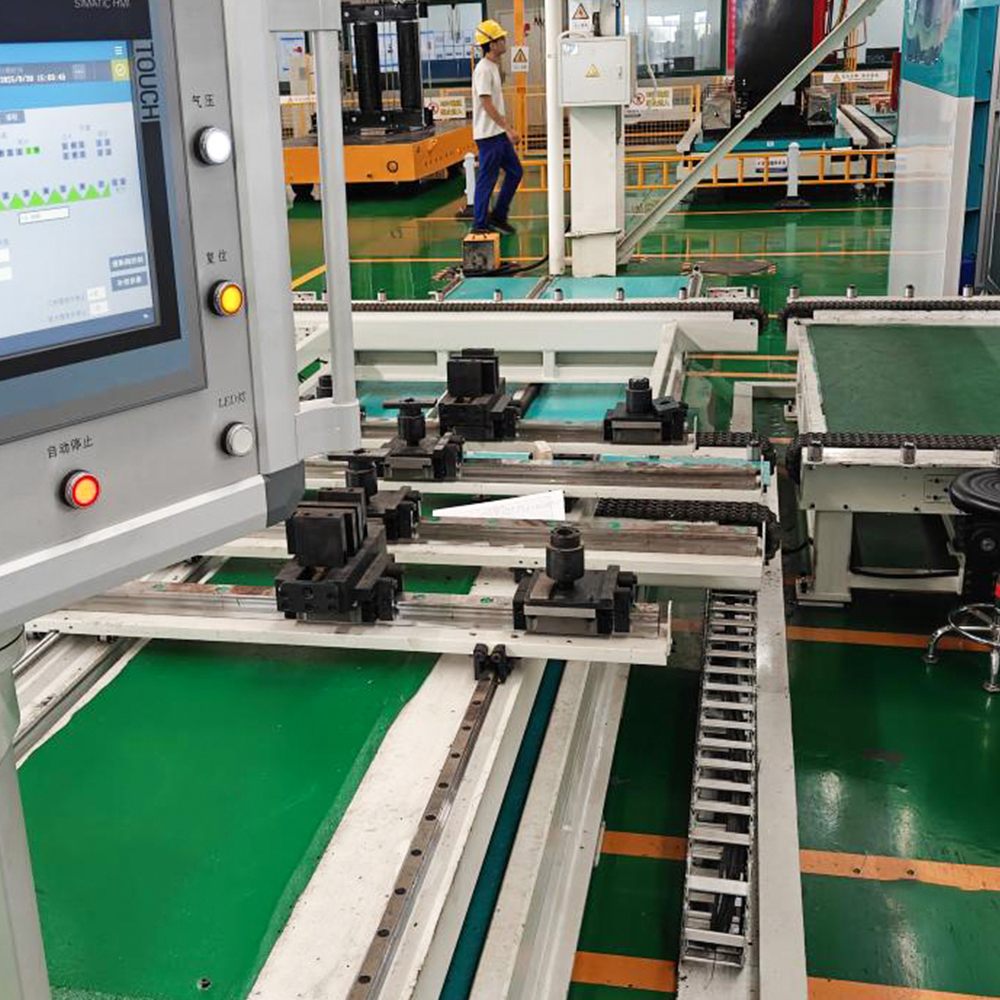

1 Imperium System & Tactus Screen Siemens
2 Servo Coegi Ratio Siemens
4 Electrical Components Schneider humili intentione virgas; Panasonic mensas
5 Propinquitas SWITCH Autonics / INFIRMIS
6 Dis Puga Eton (Moeller) vel aequivalens
7 Tria tempus Motorum Siemens (Bode) / Jiegong / Yinda vel aequivalens
8 Solenoid Valvulae SMC (Japan) vel aequivalens
9 Cylindri & Regulantes Valvulae SMC (Japan) vel aequivalens
10 Vacuum System SMC (Japan) vel aequivalens

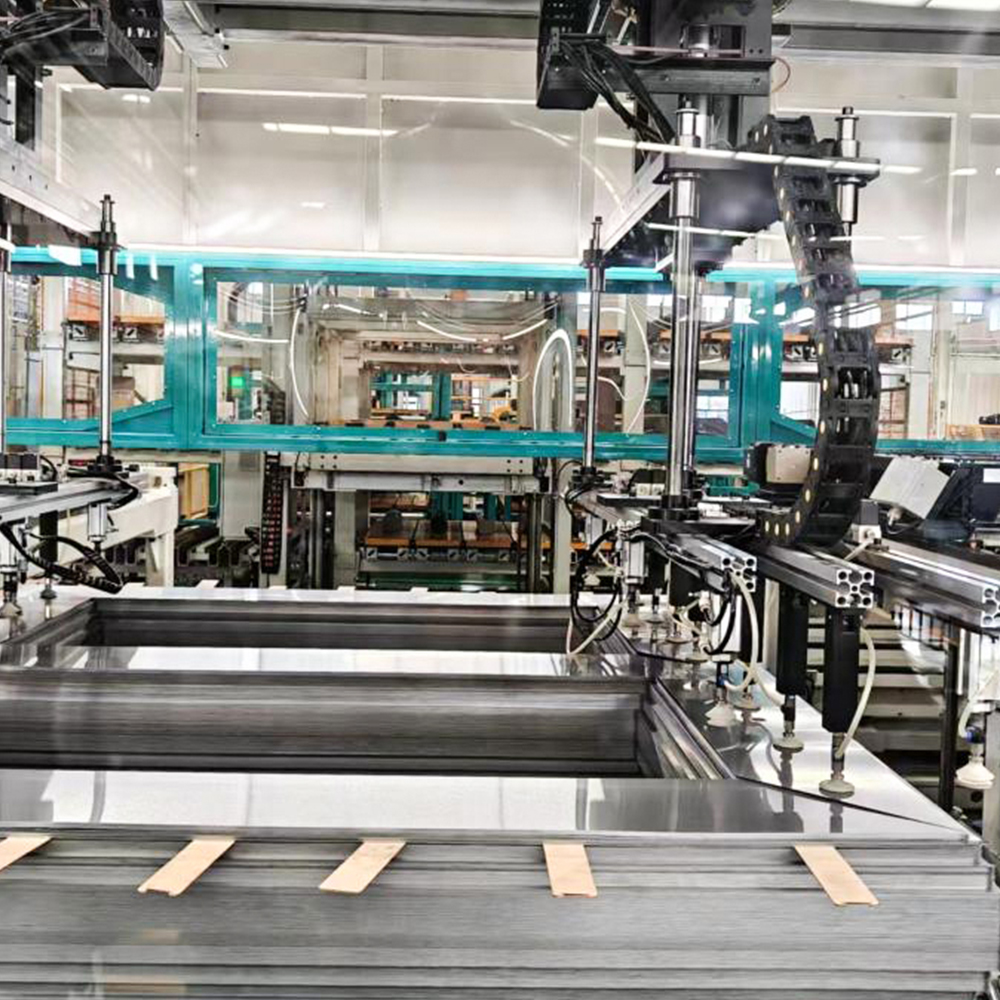

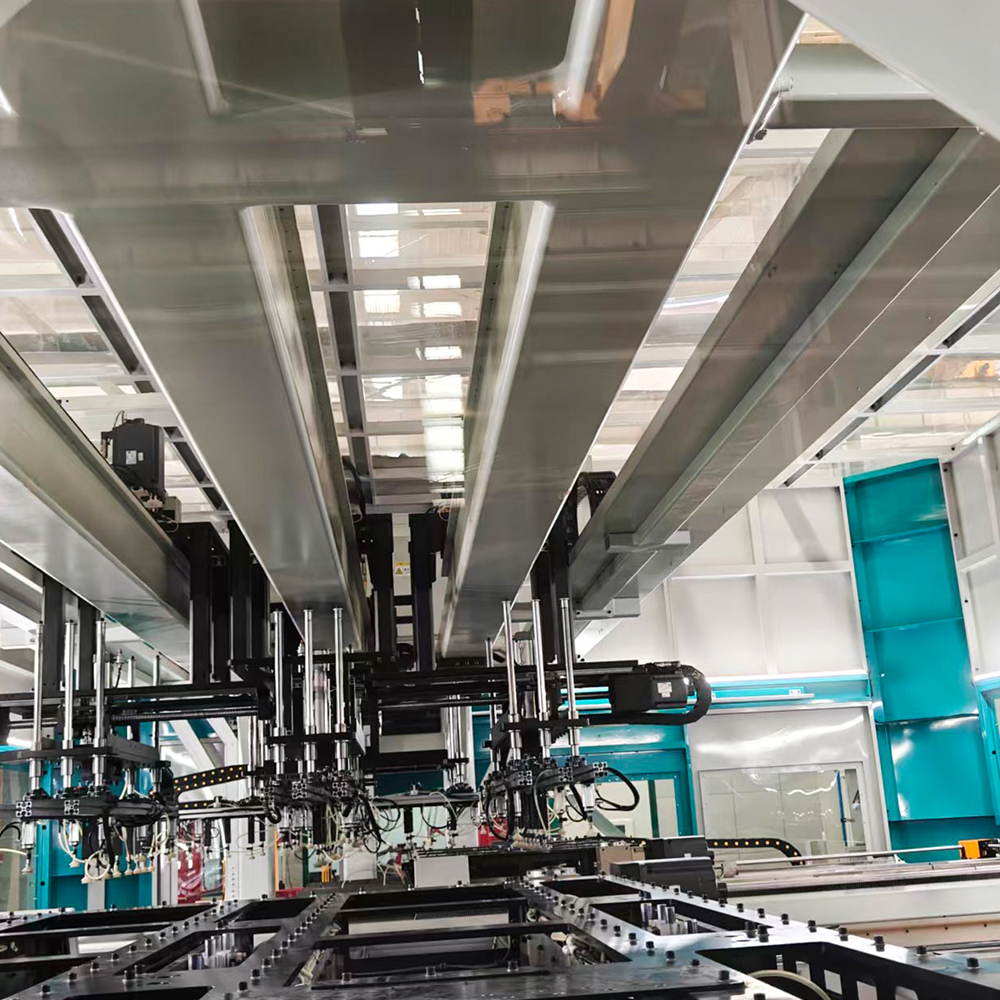

11 Vacuum suctus cucurbitulae SMC (Japan) vel aequivalens
12 Linearibus Guide Rails ILLABORATUS / PMI / EXERCITUS MUNDUS / Jiding or equivalent
13 Ball Cochleas NanGongYi / AHK / DTK / Jinqiu vel aequivalens
14 Tormenta & Gears Atlanta (Germania) / APEX vel aequivalens
15 Servo Reducers Neugart / ZD / Tandler vel aequipollens

Documenta technica

Nec. Documenti nomen quantitas
1 Equipment Parts List 2 copies
2 Testimonium conformitatis 1 copy
3 Electrical Schematic Diagram 2 exemplaria impressa 1 electronic fasciculi
4 Electrical Wiring Diagram 2 exemplaria impressa 1 electronic fasciculi
5 Electrical Component Manuals I effingo uterque
6 Equipment Operatio Manual (ratio operandi, sustentatio & normae serviendi) 2 exemplaria impressa 1 electronic fasciculi
7 Installation Tabulatum Plan 1 Typis 1 electronic fasciculi

Institutionem, Commissionem, Trainationem, Post-Sales Service & Warranty

Institutionem, Commissionem & Training In fabrum supplementum liberam in-siti institutionem de operatione, sustentatione, et impensa praebent. Tempus requiritur: instruitur et committens plerumque intra 2 septimanas perficitur. Disciplina curatores (applicatio operariorum et technicae conservationis) simul incipit cum institutione et desinit ad institutionem peractam.
Post-Sales Service Si difficultates armorum oriuntur, supplementum litterae curatores reficiendi et sollicitudinis fundamentales et quotidianae sustentationis regimen praebet.
Cotidiana Responsio Tempus Responsio intra 24 horas. In-sito adventu: eodem die intra provinciam elit; postridie ad alias provincias profectus est.
Feriae Response Time Responsio intra 24 horas. In-site adventus diebus festis, si emptor in officio personas habet.
Nota: 1. Pro delictis ad locum serviendum, adventus plerumque intra 48 horas est; resolutio telephonica praeponitur ubi fieri potest. 2. In vita victualia servitia praebet; Aenean parce partes, partes, subsidia technica et post tempus praestat permanere. 3. Si emptor defaltam fecerit post acceptationem, praebitor nullam obligationem praestat.
Warantum Tempus XII mensibus a die acceptationis finalis. Per tempus praestat, si culpa oritur ex instrumento qualitatis quaestiones vel rectae operationis per modum procedendi, commeatus liberas partes praebet et nullo pretio emptori reficit. Si culpa oriatur propter defectum operandi agendi vel onerandi consequendi, elit statim culpam et crimina tantum sumptus componentes solvit..
More commendatione
De Us
Jiangsu Jingtianxia Electric Technology Co., Ltd.
Jiangsu Jingtianxia Electric Technology Co., Ltd. is a leading and competitive enterprise in the domestic industry, specializing in the R&D, production, and supply of core power supporting products. Our main product portfolio covers transformer cores, intelligent transformer core stacking equipment, core transverse cutting machines, intelligent workshop warehousing systems, and automated logistics production lines. Staffed with more than 46 professional technical talents, the company boasts solid technical accumulation and a mature production system. We are China ZXD-440 Automatic In-line Transformer Core Stacking Production Line Suppliers and ZXD-440 Automatic In-line Transformer Core Stacking Production Line Exporter&Company, Focusing on the electric power industry, we continuously provide high-quality, high-precision, and intelligent one-stop supporting solutions for global customers.
Testimonium Honoris
  • Patentes certificatorium
  • Patentes certificatorium
  • Patentes certificatorium
  • Patentes certificatorium
  • Patentes certificatorium
  • Patentes certificatorium
  • Negotium License
  • Quality Management System Certification
News
Nuntius videre
ZXD-440 Automatic In-line Transformer Core Stacking Production Line Industry knowledge

Quid sunt key Differences inter systema In-line Stacking (Like the ZXD-440) and an Offline Stacking System?

In modernis nucleis transformator fabricandis, electio inter lineas et offline positis conformationibus fundamentaliter afficit efficientiam productionem, laboris instruere, qualitatem constantiam, et pavimentum utendo. In medio huius evolutionis technologicae est thema zxd-440 automati in-line transformer core stacking production line , systema machinatum ut traditionales bottlenecks eliminarent per synchronum tonsuram et positis. Articulus hic praebet strictam et comparativam analysin in linea versus offline positis methodologiis, trahens in specifica philosophia systematis zxd-440 et facultates fabricandi Jiangsu Jingtianxia Electricae Technologiae Co, Ltd. Tres subcategorias producti ordinatos distinctos examinamus; summus celeritate positis modulorum continua , accuratius gap-potestate positis unitates et intelligentes notitia-integrata positis lineae — illustrare quomodo in linea technologia redefines nucleum coetum.

1. Summus Celeritas Continua Stacking Modules

Definitio et positio: Summus celeritas continua positis modulorum repraesentant core brachium operational ipsius zxd-440 automati in-line transformer core stacking production line . Modi hi directo coniunguntur tonsurae transversae, ut simultaneam tonsuram et reclinationem sine intermedia tractatione. Dissimiles systemata offline, ubi laminae incisae in grabatis reclinatae sunt, portantur, et dein in stationes positis manually pascuntur, modulus iste in tempore reali positis peragit dum fasciae tondendas exeunt.

Core munera et technicae lineamenta: Modulus velocitates operatur matching tondendum output, cum capita servo agitatae robora et locum, quae singula laminationem ordinant secundum exemplaria vitrici gradus programmatis. Gradus traditi levandi tonsuram et positionem manualem aufert, reducendo cyclum tempus per supra 40% in typicam tabularum figurarum tabernam. In sensoriis monitoriis laminationis planitiam et marginem lappa inaedificata, sponte reiectis frusta defectiva ante positis.

Applicata typica: Cuius moduli specimen est summus volubilis distributio nucleorum transformatoris (usque ad 2,000 kVA) ubi perput est vis primaria. In officinis duas vel tres vices praecellit, ut eius automated pastus operantem lassitudinem et errorem minuit.

Differentia ab offline positis: Offline positio requirit areas choragi dicatas, grus manuales operationes, et tignorum positio separata. Quaelibet translatio noctis inducit errores et in ore damnum. E contra zxd-440 automati in-line transformer core stacking production line maintains continua materia fluxus praecise propensionis conservans tondendas et subtrahas re- alignment gradus.

Jiangsu Jingtianxia Electric Technologia Co., Ltd. hunc modulum cum instrumento proprietatis vivo mutato integravit, unum sinit. in linea positis systematis nucleum latitudines ab 40 mm usque ad 400 mm tractare sine servandis mechanicis 5 minutis excedentibus. Haec flexibilitas raro consequi potest in setups offline, quae saepe adfixae per nucleum magnitudine dedicatas requirunt.

Key Specifications - High-Module

  • Maximam celeritatem positis: usque ad 120 laminationes per minutias (pro crassitudine dependentes).
  • Laminatio crassitudinis ambitus: 0.18 mm - 0.35 mm (ferrum silicum).
  • Step-lap overlap accurate: ±0.05 mm.
  • Lappa automataria detectio cum porta real-time repudiat.
  • Direct Ethernet/IP connectivity pro remota vigilantia.

2. Subtilitas Gap-Control Stacking Unitates

Definitio et positio: Secunda subcategoria critica in the zxd-440 automati in-line transformer core stacking production line est subtilitas gap-control unitas. Dum offline positio pendet ab arte operatoris ad servandum hiatus caeli uniformes inter nucleos fasciculos, haec unitas automates hiatus mensurae et commensuratio utens triangulationis laseris sensoriis et actuatoribus servo clausurae.

Core munera et technicae lineamenta: Singulis cycli positis cyclum ipsum intervallum mensurat quinque puncta per nucleum crus. Unitas tunc compensat per micro-aptans condicionem laminationis proximam vel eligendo laminationem shim ex dedicato faetore. Pluma haec directa transformator sine onere damna appellat, sicut hiatus inaequalis sunt causa primaria venae magneticae auctae. Systema recondit histograms per nucleum hiatum, ut statisticam processum coerceat.

Applicata typica: Haec unitas necessaria est ad potestatem transformantis nucleorum (10 MVA et supra) et propter specialitatem transformatorum tractionem ubi poenae damnum gravia sunt. Adhibetur etiam in corollis cum articulis infulatis, quae tolerantias arctissimas requirunt (± 0.02 mm), quod methodi offline manualis constanter consequi non possunt.

Differentia ab offline positis: Offline positio innititur sensui gaugis et iudicio operatorium, quae variabilitatem inducunt per vices et operatores. Praeterea systemata offline non possunt hiatus dynamice adaptare postquam nucleus congregatus est; aliqua correctione requirit partialem disassembly. The in linea positis aditus cum zxd-CDXL platform efficit ut gap notitia perscrutans per lamination et corrections are applied in real time, resulting in a more consistent magnetic circuit.

Jiangsu Jingtianxia Electric Technologia Co, Ltd. hanc unitatem in super 200 officinarum confirmavit, demonstrans mediocris reductionem 8-12% in core damna comparata ad offline manuali positis pro eodem ferro gradus. Societas R&D manipulus (46 technicae professionales) hiatus proprietatis evolvit algorithmorum imperium, qui nunc in vexillum inserti sunt. automatic in linea positis lineam software suite.

Eget Comparatio - Gap Imperium Methodi

Parameter ZXD-440 In-line Unit Offline Manual Stacking
Gap mensurae modus Triangulum laser (V puncta) MODULUS feeler (macula-reprehendo)
Correctio frequency Omnis lamination exolvuntur Post plenam core ecclesiam
Typical gap tolerantia ±0.02 mm (Cpk ≥ 1.67) ±0.08 - 0.15 mm.
Data traceability Batch-gradu Mearum & singula core omnia Limited (manual records)
Setup tempus novum core genus ≤ III minuta (revocatio facito) XV - XXX minuta (jig mutatio disciplinae)

3. intelligens Data-Integrated Stacking lineae

Definitio et positio: Tertia columna zxd-440 automati in-line transformer core stacking production line stratum notitia-integrationis intelligentis est, quae lineam e machinae a standalone in nodi intra fabricandi ecosystem fabricandi digitalem iacientem transformat. Offline positis, contra, operatur ut separatim workstation cum minimal feedback digital.

Core munera et technicae lineamenta: Haec systema notitias reales temporis colligit ex sensoriis tondendis, servos positis, unitates hiatus imperium, cameras inspectiones visionis. Aggregatis praecipuis indicibus perficiendi (KPIs) qualia sunt efficacia armorum altiore (OEE), positis frugibus, medium tempus inter assistentes (MTBA), et nucleum iacturae praedictionis secundum mensuras hiatus. Systema etiam cum administratione instrumentorum horreorum intercedit ut gyros ferro automatice petat qui in tonagium consumptum est.

Applicata typica: Haec linea intelligens explicatur in officinis captiosis sequens Industry 4.0 certificationis, tum in facilitatibus multi-productis ubi mutabilis frequentia alta est. Praedictivam sustentationem dat per excursus motorios et vibrationes servo vestigia vestigia, operariorum erectiones antequam tempus inconditum fiat.

Differentia ab offline positis: Systema Offline generant parum ad nullas notitias digitales; qualitas reprehendo saepe peracta, postquam positis completur, ducens ad quaestiones deprehensionem retardatam. The in linea intelligens ratio tamen praebet clausa, loop qualis imperium - si deviatio detegatur, linea potest consistere et auto- corrigere, vel nucleum reficere antequam stationem emittat. Haec facultas apprime utilis est ad applicationes altae firmitatis sicut transformatores marinorum et gradatim ventorum turbinorum unitates.

Jiangsu Jingtianxia Electric Technologia Co., Ltd. hanc intelligentiam in omnes inseruit zxd-440 in-linea positis solutionem ab anno 2024 liberavit, turmas programmatum domesticorum in- vecturas ad ashboardas customizandas pro cuiusque incepti subsidii consilio (ERP) systematis. Societatem integrari aditus-tegumentum nuclei transformatoris, nuclei positis instrumenti intelligentes, nucleus transversus machinarum secantium, horreorum intelligens, logistics automated -ensures ut linea data-integrata positis seamlessly flumine et amni instrumento communicat.

  1. Real-time OEE tracking - downtime, velocitas damnum, et qualitas damna in HMI monstrantur.
  2. Praedictivum diagnostica summis – fundatur in scelerisque et tremor exempla.
  3. Recipe administratione - thesauris usque ad 1,000 nucleum consiliorum cum omnibus positis parametris.
  4. Lorem batch renuntiationes – PDF/CSV exportationes ad qualitates audiendas calles.
  5. Remota firmware update facultatem - efficit continuam emendationem sine visitationibus on-site.

Ratio-Level Comparatio: In-Line vs. Offline Stacking

Aspect ZXD-440 In-line Stacking Offline Stacking (Conventional)
Materia fluxus Continua (tondere → ACERVUS → output) Batch (tondendas → copia → onerariis → acervus)
Opus per laborem subcinctus 1 - 2 operators (solum adipiscing) 4 - 6 operators (manuale pertractatio positis)
Core damnum variabilitas (COV) ≤ 3.5% 8 - 12%
Tabulatum spatium vestigium Foedus (excludit CHORAGIUM area) Maior (requirit zonas quiddam ac mutata repono)
Changeover tempus (core genus novum) 2 - V minuta (recipe software) XX - XLV minuta (mechanica disciplina)

Frequenter Interrogata

Q1: Quae utilitas prima operativa zxd-440 in linea positis systematis offline methodis?

Prima utilitas est simul tonderet et positis quae excludit traditos gradus levandi post tonsuram et positis manibus manualem. Hoc spatium cycli per 40% minuit, minimizet tractationem damni infecti, et efficit ut omnis laminatio reclinata sit in accurata intentione, sicut tondendas relinquit — in arctiore hiatu imperium et detrimenta nucleorum inferiorum resultans.

Q2: Quomodo unitas hiatus-continionis praecisio inter zxd-440 differt ab offline temperatio hiatus?

In zxd-440 utitur sensoriis laseris triangulationis ut hiatus quinque punctis per cyclum metiatur et in emendando servo clauso-lopam statim applicat. Offline temperatio nititur in fauoribus manualibus et correctionibus tantum post plenam ecclesiam, quae dynamice compensare non potest pro variationibus in positis. Unitas in-linea ad patientiam plenam cum traceability pervenit ±0.02 mm.

Q3: Potestne zxd-440 tractari varias nucleos et materias sine diuturnis mutationibus?

Ita. Per consequat sit amet luctus, zxd-440 automati in-line transformer core stacking production line addit ad 1,000 nucleus consilia. Mutatio inter latitudines (40-400 mm) et crassitudines (0.18-0.35 mm) 2-5 minutas accipit, comparata ad 20-45 minuta systemata offline quae corporis mutatas et operator retardationes requirunt.

Q4: Quod munus facit Jiangsu Jingtianxia Electric Technologia Co, Ltd ludere in sustinendo hoc in-linea positis technologia?

Jiangsu Jingtianxia Electric Technologia Co, Ltd. praebet finem-ad-finem integrationem-e in linea positis lineam et machinis transversis secandis intelligentibus horreis et logisticis. Cum supra 46 technicas artes, societas programmatum programmatum ashboardarum, predictive sustentationem compagum, et campi globalis sustentationem offert, ut singulas zxd-440 adsignas institutionem cum ecosystem productionis huius existentis.
